HBC6DB
Price range: 85,00€ through 160,00€
20% discount with code: DOUBLEBLADE23

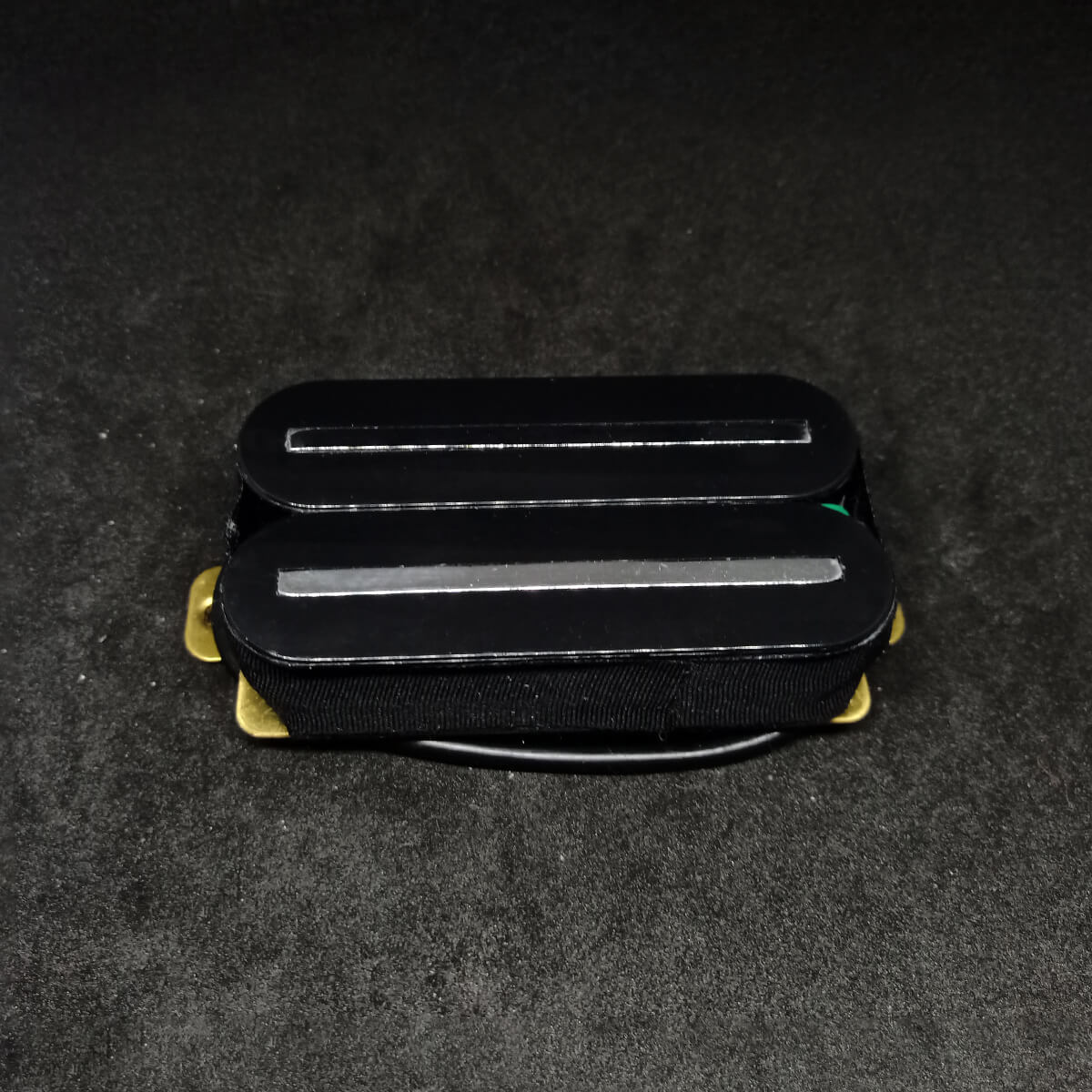

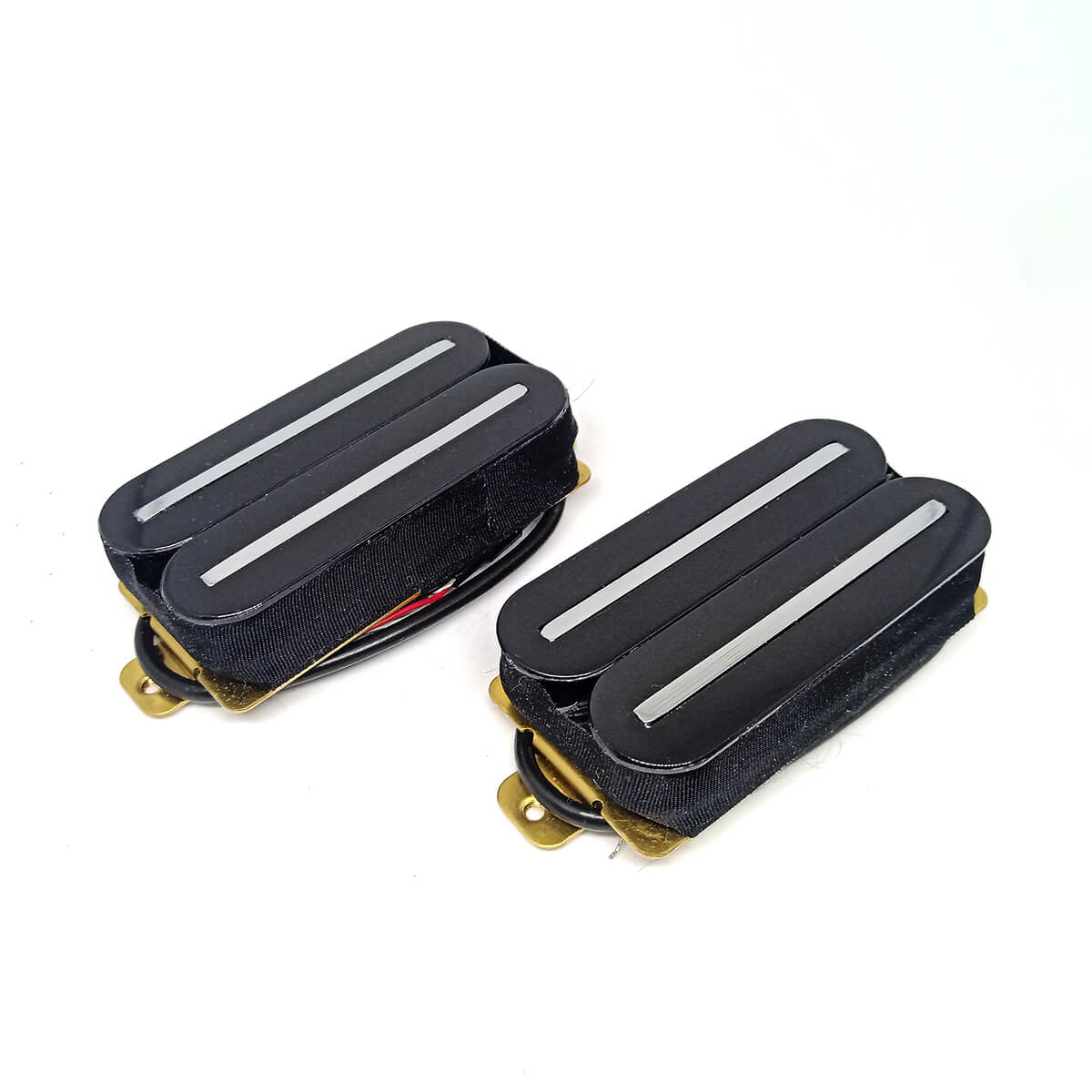

Discover our handmade Humbucker pickups IUSO HBC6DB, perfect for 6 strings guitars. Featuring black ABS bobbins, steel blades, and ceramic magnets, they deliver a powerful sound. With the 4 conductors wires, you can take advantage of coil splitting and use the pickups in both series and parallel modes.
- Description
- AUDIO DEMO
- Additional information
- Reviews (0)
Description
-Poly-Nylon copper wire 42awg and 43awg
-Steel blades
-Ceramic magnets
-ABS bobbins
-DC resistance: 7.9k (neck), 11.4k (bridge)
-Inductance: 4.9h (neck), 5.9h (bridge)
-Wax potted
-Brass baseplate
-Protective tape
Additional information
| Bobbin | Plastic |
|---|---|
| Cable | 4 conductors shielded |
| Winding wire | Poly nylon |
| Inductance | 4.9h (approx.), 6h (approx.) |
| Resistance | 11/12k (approx.), 7/8 k (approx.) |
| Color | Black |
| Magnet | Ceramic |
| Number of strings | 6 strings |
| Wire gauge | 42 awg, 43 awg |
| Pickup type | Humbucker |
| Cover | No |
