MMNeo5
100,00€

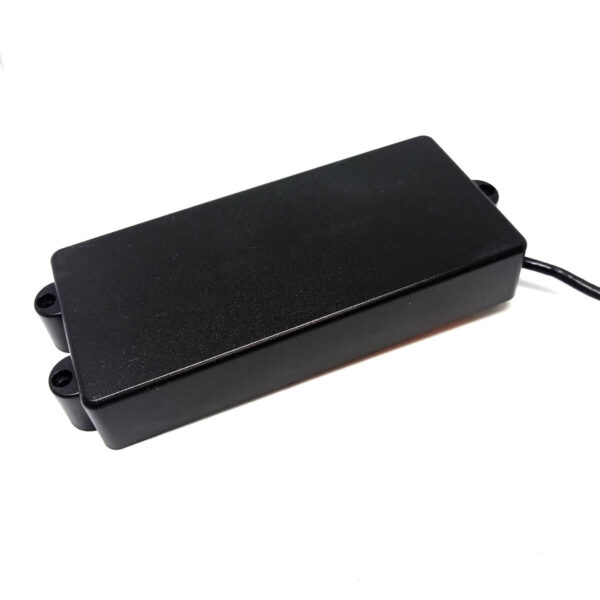

Handcrafted humbucker pickup IUSO MMNeo5 compatible with 5 strings basses Stingray-style (OLP, EKO, etc.). Neodymium poles ensure high power and brilliance. Thanks to the 4 conductors wire, you can wire the coils in series, parallel, or split the individual coils. Due to the increased power of Neodymium poles compared to Ceramic and Alnico 5 poles, it’s recommended to adjust the distance from the strings for optimal performance.
- Description
- Additional information
- Shapes and cover dimensions
- Reviews (0)
Description
5-string bass version of the MMNeo4 model.
-Closed cover
-Neodymium magnets
-42AWG Poly-Nylon wire
-Wax potted
-Resistance in series 5-6k
-Resistance in parallel 3-4k
-4 conductors wire for parallel, series or single coil.
-Upper coil with NORTH polarity and CCW winding (black and white wires)
-Lower coil with SOUTH polarity and CCW winding (green and red wires)
Additional information
| Number of strings | 5 strings |
|---|---|
| Magnet | Neodimio |
| Pickup type | Humbucker |
| Resistance | 3/4 (parallel), 5/6 (series) |
| Bobbin | Plastic |
| Cable | 4 conductors shielded |
| Winding wire | Poly nylon |
| Wire gauge | 42 awg |
| Color | Black |
| Cover | Closed |
